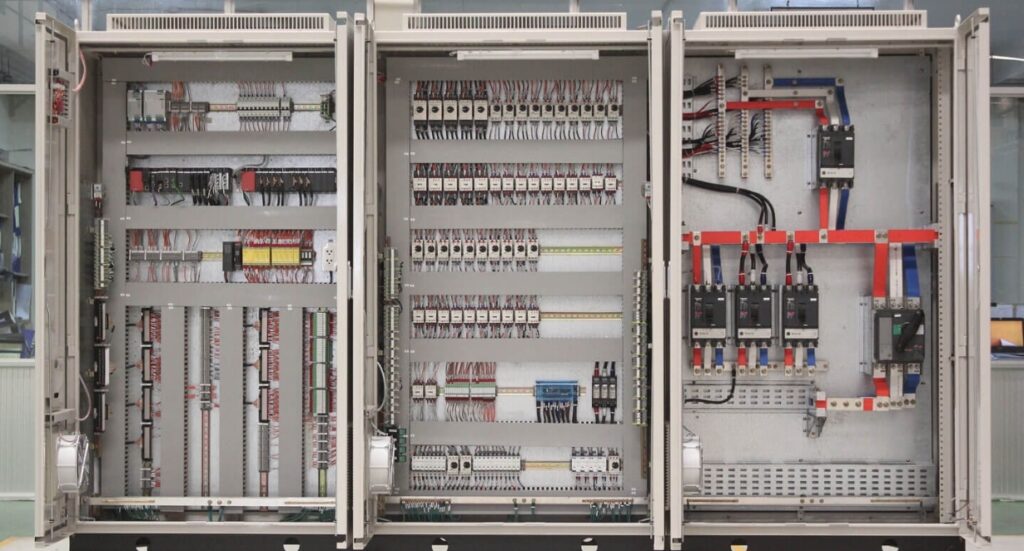

Jet Fan Automation Panel
The Jet Fan Automation Panel is the intelligent control heart of any modern car park ventilation system. It continuously monitors CO and fire/smoke detection signals and orchestrates all mechanical devices — jet fans, axial fans, air and smoke dampers — according to pre-programmed ventilation scenarios. Built around an advanced PLC (Programmable Logic Controller), it ensures full life-safety compliance and significant energy savings through precise, sensor-driven fan speed management during both daily operation and fire emergencies.
- We guarantee EU-standard quality.
- Count on rapid, reliable global delivery.
- Backed by 24 years of expertise.
Areas of Use
The Jet Fan Automation Panel is an indispensable component of any ductless jet fan parking ventilation system, transforming individual fans and sensors into a fully coordinated, intelligent life-safety network. It is equally effective for daily CO management and critical emergency smoke control scenarios. Deploy this smart automation panel confidently in:
- Underground and enclosed car parks with jet fan ventilation systems
- Shopping mall and retail center parking facilities
- Hospital, hotel, and residential complex parking structures
- Large corporate office and institutional parking garages
- Airport, transportation hub, and multi-level parking structures
Key Features & Specifications
Advanced PLC-Based Control Architecture: Built around a sophisticated Programmable Logic Controller (PLC) that carries all mechanical devices in the system — including axial fans, jet fans, air dampers, and smoke dampers — according to signals received from CO detection and fire/smoke detection systems. Fully programmable ventilation scenarios ensure the system always responds correctly to any situation.
Dual-Mode Operation — Daily & Emergency: Jet fans operate at first motor speed for daily ventilation based on CO sensor readings, and automatically switch to second motor speed upon receiving signals from the fire or smoke detection system. This seamless transition from normal operation to full emergency mode is fully automated and requires no manual intervention.
Full CO Sensor Integration: Works fully compatibly with CO gas sensors positioned throughout the parking lot. When CO levels exceed safe thresholds, the panel activates the required jet fans and exhaust fans in a targeted zone-by-zone sequence, ensuring efficient air quality management while minimizing unnecessary energy consumption.
Smoke & Fire Detection System Compatibility: Designed for seamless integration with all standard fire and smoke detection systems. Upon receiving a fire alarm signal, the panel immediately executes the pre-programmed smoke control scenario — closing and opening floor dampers as required to contain smoke, protect escape routes, and assist fire brigade operations.
Damper Control & Zone Management: Floor dampers are automatically opened and closed according to the scenario written into the PLC, preventing harmful gases and smoke from spreading between zones. This precise zone-by-zone control is critical for directing smoke toward extraction shafts and maintaining smoke-free evacuation corridors.
Significant Energy Savings: By operating only the fans required in active zones and adjusting speed based on real-time sensor data, the automation panel delivers substantial energy savings during daily operation compared to fixed-speed, always-on ventilation systems.
Complete Electrical & Wiring Documentation: All electrical diagrams, wiring diagrams, and fan room installation drawings are fully prepared and supplied with the panel, ensuring straightforward commissioning and long-term ease of maintenance throughout the system lifetime.
