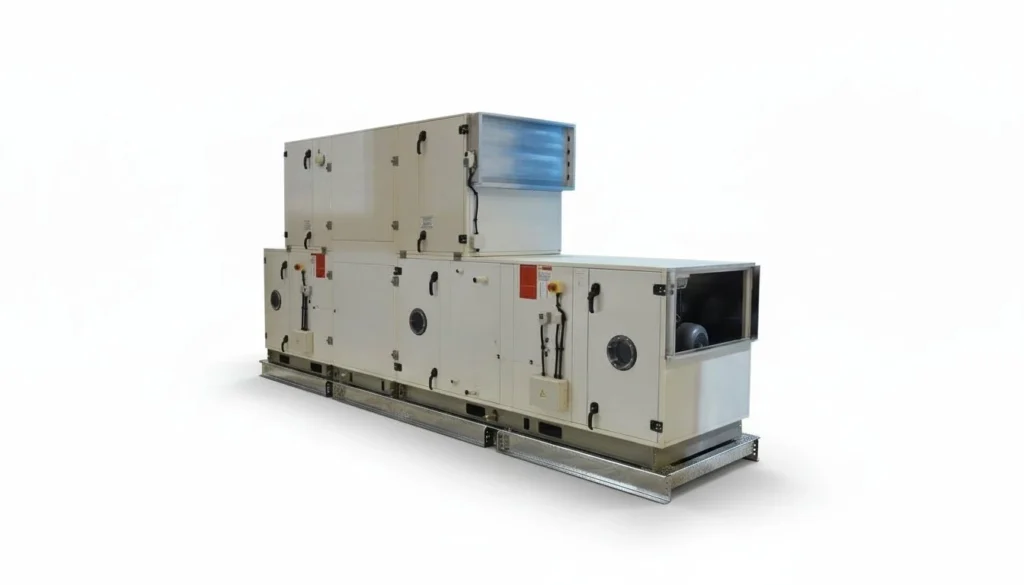

AHU - FKS Series Air Handling Units
The FKS Series Air Handling Units are fully modular, double-skinned HVAC central stations engineered to condition, filter, heat, cool, humidify, and distribute air across the full spectrum of commercial and industrial building applications. Manufactured in 28 configurable sections with flow rates ranging from 900 m³/h up to 145,000 m³/h for cooling/ventilation and up to 194,000 m³/h for heating-only systems, the FKS series delivers precisely the air quality and thermal comfort conditions required — built to international standards with EU-grade components throughout.
- We guarantee EU-standard quality.
- Count on rapid, reliable global delivery.
- Backed by 24 years of expertise.
Areas of Use
The FKS Series Air Handling Units are the central air treatment solution for any large-scale commercial, institutional, or industrial building requiring precise control of air temperature, humidity, filtration, and distribution. Their fully modular design allows them to be configured for virtually any HVAC application. Use these high-capacity air handling units confidently in:
- Large commercial buildings, business centers, and corporate offices
- Hospitals, healthcare facilities, and cleanroom environments
- Hotels, shopping malls, and large hospitality venues
- Industrial facilities, manufacturing plants, and process environments
- Airports, conference halls, theaters, and large public buildings
Key Features & Specifications
Fully Modular Construction in 28 Sections: The FKS series is manufactured in 28 different configurable sections, allowing each unit to be precisely tailored to the exact heating, cooling, filtration, humidification, heat recovery, and fan requirements of any project — from a simple supply-only unit to a fully equipped multi-coil system.
Massive Flow Rate Range — 900 to 194,000 m³/h: Available across an exceptionally wide capacity range, covering flow rates from 900 m³/h up to 145,000 m³/h for cooling and ventilation applications, and up to 194,000 m³/h for heating-only systems — ensuring the correct unit size can be specified for any project scale.
Double-Skin Insulated Panels: All panels are manufactured with a double-skin construction using 50mm or 60mm thick insulation in rockwool, glasswool, or polyurethane — providing excellent thermal performance, condensation prevention, and sound attenuation in both indoor and outdoor installations.
High-Quality Aluminum Profile Frame Structure: The unit frame is constructed from specially designed electrostatic oven-coated aluminum profiles joined with plastic corner fittings and EPDM-sealed panel joints — creating a structurally rigid, thermally broken, and airtight casing with long service life.
Hygienic Flat Inner Surface: The flat, smooth inner surfaces of all panels prevent dust accumulation and make cleaning straightforward — an essential requirement for air handling units serving hospitals, cleanrooms, food production facilities, and other hygiene-critical environments.
Flexible Inner & Outer Surface Materials: Exterior panel skins are standard RAL 9002 coated sheet metal. Inner surfaces can be specified in galvanized, painted, or stainless steel according to the application requirements — including aggressive or humid environments where standard galvanized steel is insufficient.
Full Integration of All HVAC Components: The FKS platform accommodates all standard AHU sections including supply and return fans, heating and cooling coils, heat recovery sections, humidifiers, filter banks, mixing boxes, sound attenuators, and access sections — all engineered and assembled as a single integrated system.
